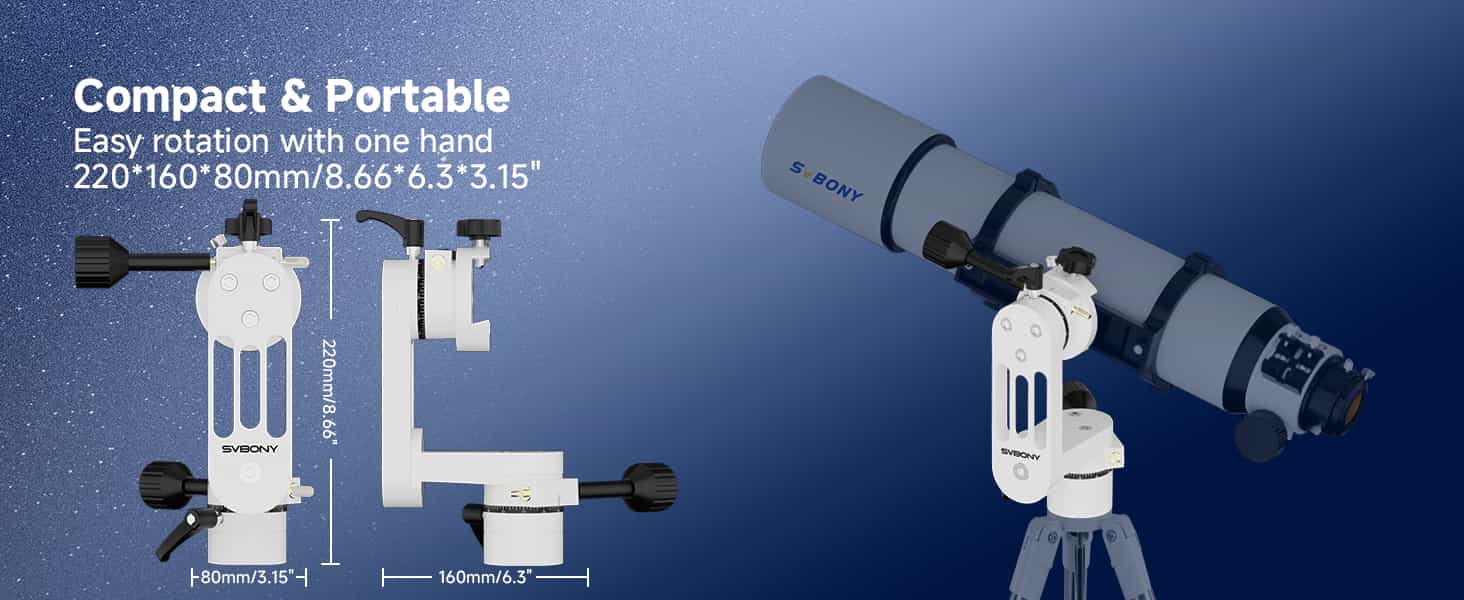

- Family design with CNC hollow structure; SV225 mini Altazimuth mount is made of hollow structure, the weight of the product is only 1.6kg. It is very portable with light weight;
- Upgraded micro-adjustment fixation; This mount allows fine adjustment of the telescope, with a screw fixation that will remain stable for a long period of time. This micro-adjustment lever meets the efficiency of your adjustments in different scenarios;
- Variable speed gear with no backlash; Variable speed gear mounted on two axes for slow motion control and no backlash during rotary adjustments, allowing you to smoothly follow the movement of the moon and planets;
- Small but strong; The SV225 MINI Alt-Azimuth constellation has an effective weight of 5kg, making it a perfect match for telescopes and more, even with its light weight;
- Scenarios of application; The telescope mount is suitable for many areas such as astronomical visual observation and surface observation.
Free shipping
Special offers and product promotions

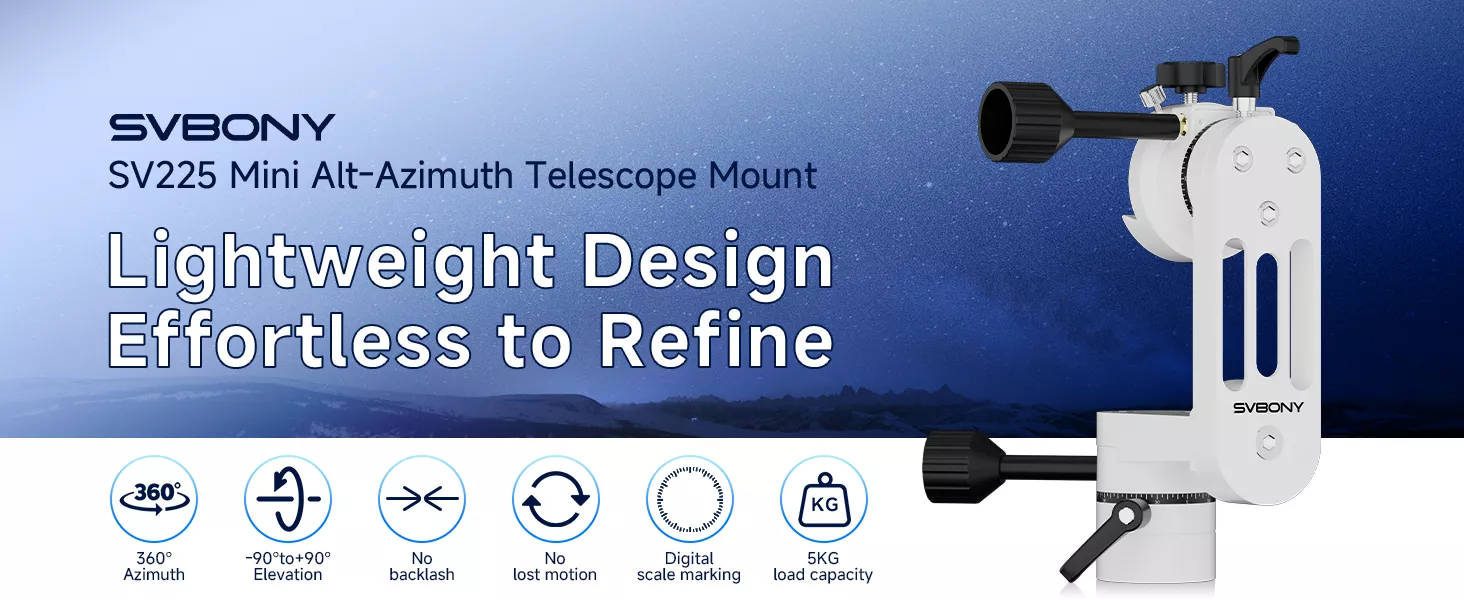

SV225 MINI Adjustable Angle Alt-Azimuth Telescope Mount
SV225 MINI alt-az mount allows the telescope to move freely in two directions - altitude and azimuth. Altitude is the movement along the vertical axis and azimuth is the movement along the horizontal axis.
The advantage of an alt-az mount is that it's incredibly simple and easy to use. To move your telescope, you just turn the two knobs to adjust the altitude and azimuth angles. This makes it perfect for viewing objects in the night sky.
When buying an alt-az mount, there are several factors to consider. First, you'll want to make sure that the mount can support the weight of your telescope. Second, you'll want to look for a mount that has smooth tracking and accurate positioning for precise star gazing.

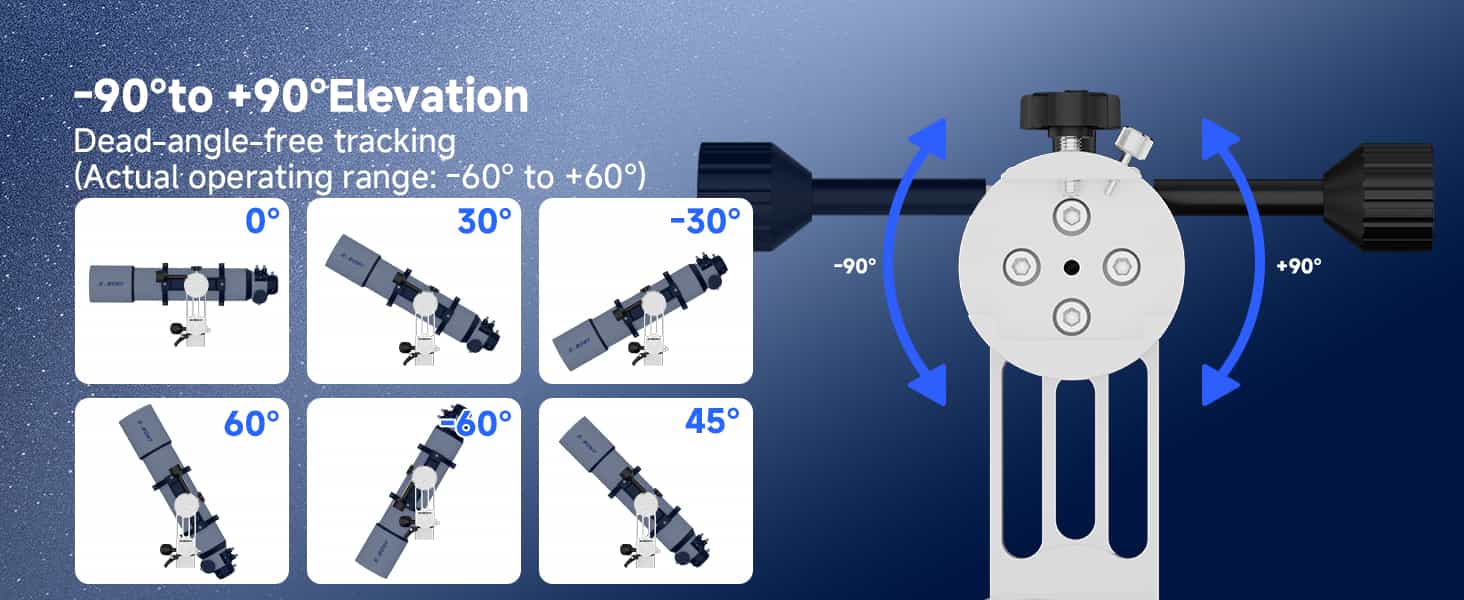

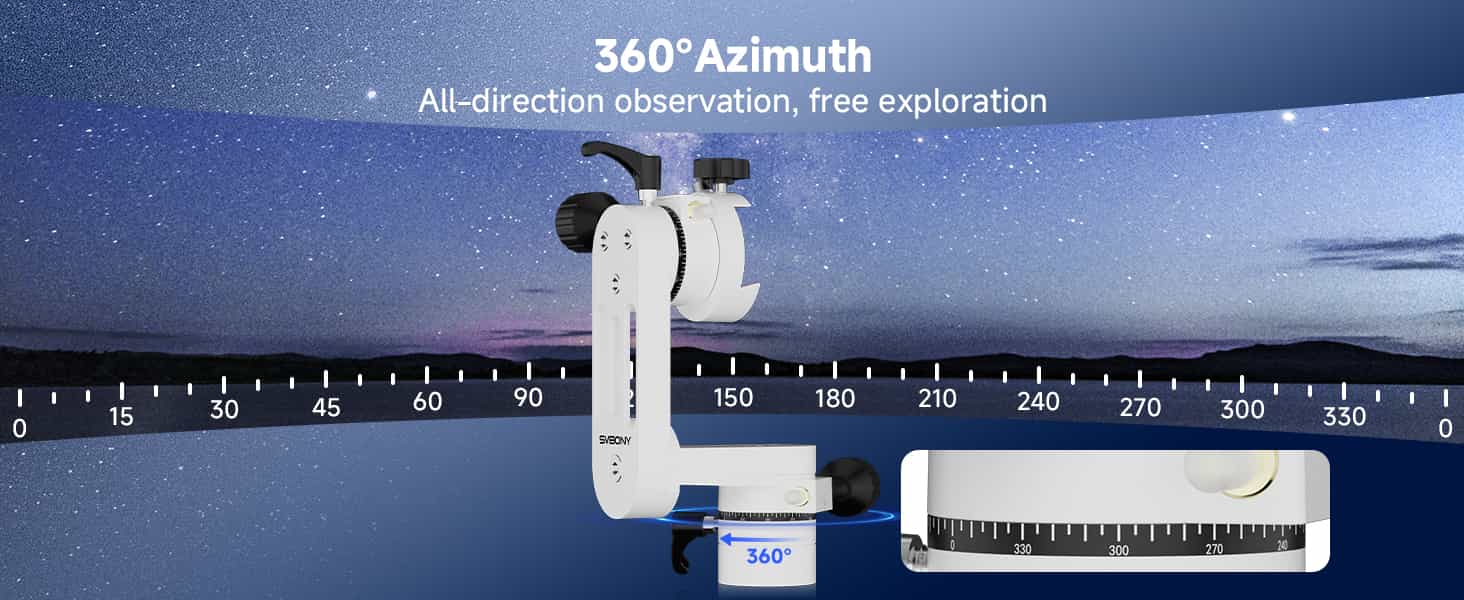

360° Azimuth & Elevation
Adjustable all-round viewing angle, observe as one pleases. Helical turbine drive supports 360° all-round adjustment, -60° to +60° altitude adjustment, all-round visual adjustment angle to meet your visual observation needs.

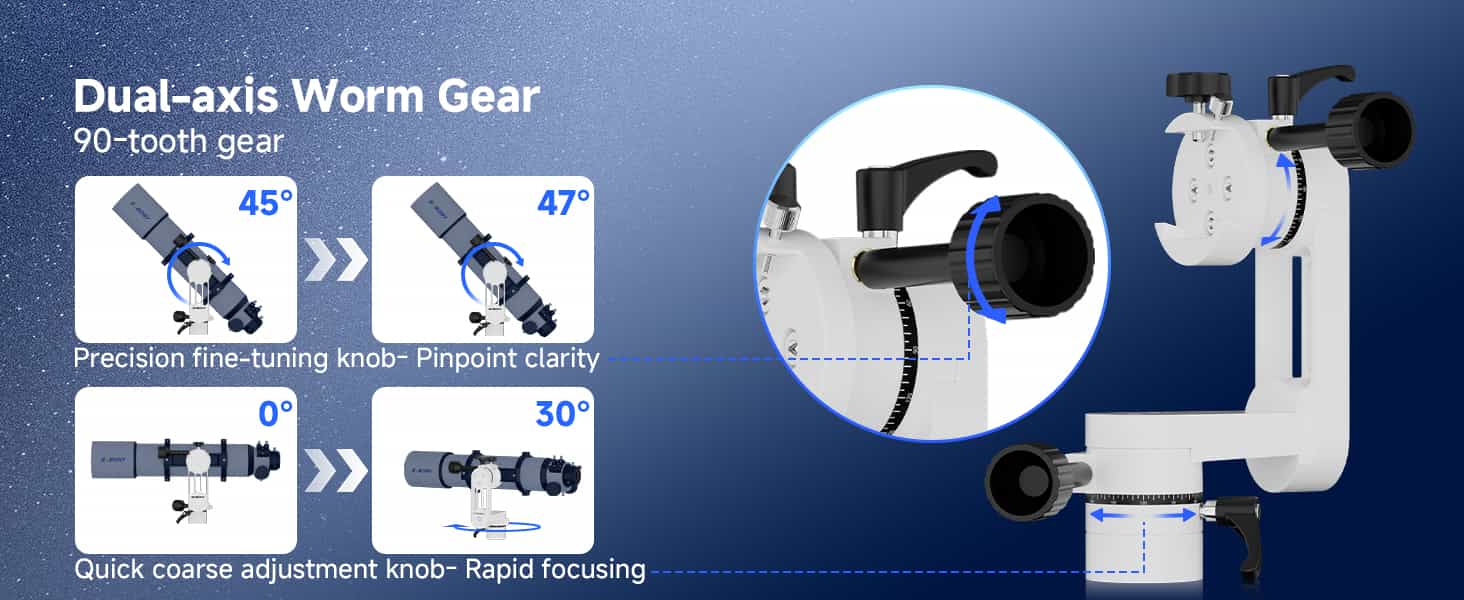

Dual-Axis Variable Speed Gear
The variable speed gear increases the torque and reduces the idle adjustment during use, making operation more comfortable. With low motion controls on both axes to let you smoothly follow the motion of the Moon and planets.

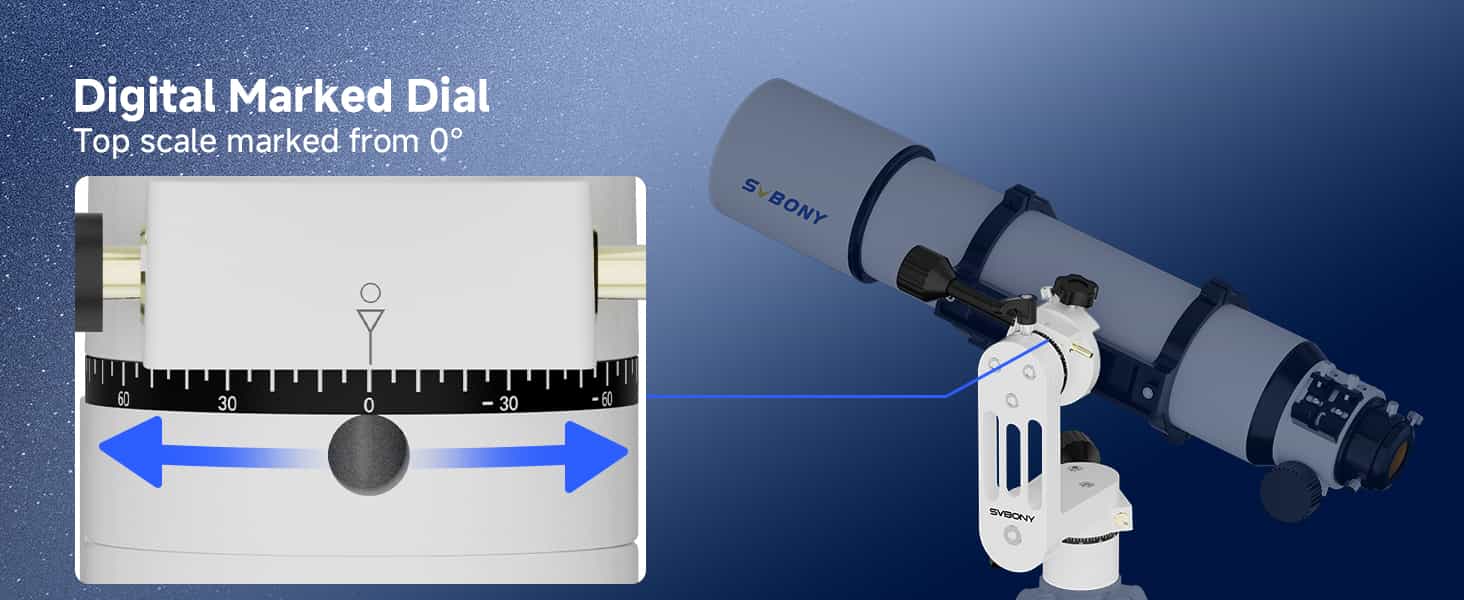

Digital Marked Dial
Digital scale mark is convenient for you positioning and adjustment, quickly point to the observation target.
CNC Hollow Structure
CNC Metal construction,durable steady for a long-term use. Applicable to most astronomical OTAs.
| Brand | SVBONY | SVBONY |
| Model | SV225 MINI | SV225 |
| Mounting Saddle | Vixen-Style | Vixen-Style |
| Fine adjustment | Yes | Yes |
| Manual tracking | Yes | Yes |
| Underneath the Base thread | UNC 3/8 -16 Female | UNC 3/8 -16 Female |
| Worm gear teeth (RA) (piece) | 120 | 120 |
| Altitude Mount Rotation Angle (Continuous) | -60° to + 60° | -60° to + 60° |
| Azimuth Mount Rotation Angle (Continuous) | 360° | 360° |
| Material | Aluminum 6061T | Aluminum 6061T |
| Max. additional load capacity | 5kg | 10kg |
| Precision | No backlash,no lost motion (backlash controlled within 20 degrees) |
Minimal backlash and play |
| Itinerary Structure | Dual-axis worm gear (90-tooth gear) | Dual-axis worm gear(120-tooth gear) |
| Net Weight | 1546g | 3500g |
| Package | 284*205*123mm | 340*285*145mm |
Feature:
- 1.SVBONY SV225 Mini Alt-Azimuth Telescope Mounts allow free tilt adjustment from -60° to the 60° and 360° azimuthal rotation, capturing any target in any direction;
- 2.SVBONY SV225 Mini Alt-Azimuth features an innovative backlash-free and play-free design, ensuring extremely precise and stable operation. No worries about equipment rebound or jamming affecting your shooting angle;
- 3.SV225 Mini dual-axis turbine and gear fine-tuning design, combined with a 120-tooth gear, ensures stability and precision during operation—whether you're quickly locating a target or making fine adjustments;
- 4.UNC 3/8 -16 thread specification is compatible with Celestron/Skywatcher/Orion/Vixen & most mainstream astronomical OTAs.It also easily adapts to a variety of astrophotography accessories;
- 5.This mount's 75° dovetail plate offers a more stable connection, optimized for OTA installation. Whether you're a beginner or an experienced astronomer, you can easily complete the setup.
Package Includes:
1. SV225 Alt-azimuth mounting bracket
2. height slow-motion flexible control cable
3. azimuth slow motion flex control cable
4. dovetailed main locking knob
5. dovetailed secondary locking knob
6. locking screws x 2
7. 8mm L-type hexagonal socket
