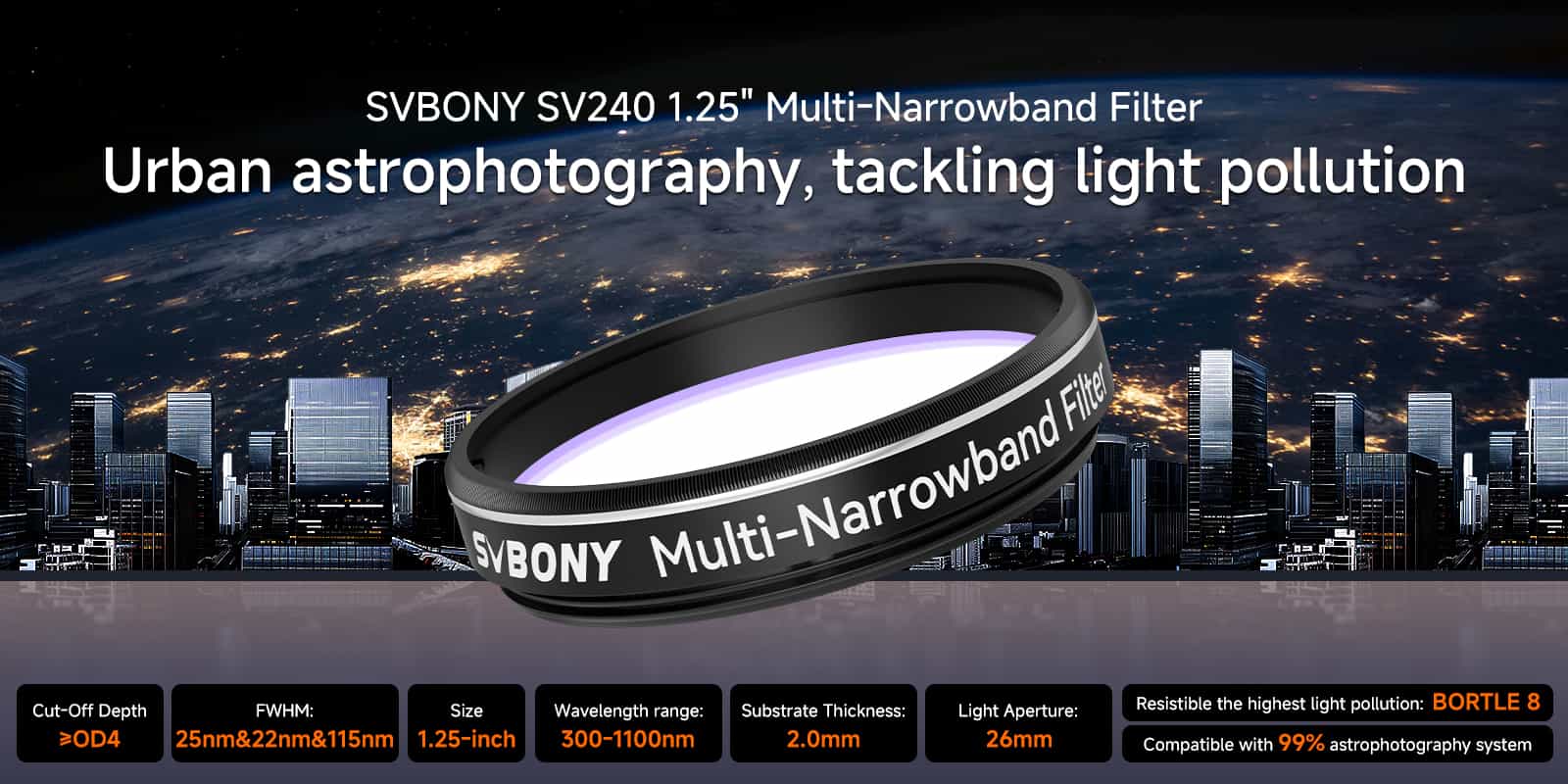

SV240 1.25'' Multi-Narrowband Filter for Urban Astrophotography

SKU: W9191B
US$ 119.99 -50%
List Price: US$ 239.98

Cut-off depth ≥OD4: Highly efficient in blocking urban light pollution or other background light;
Photoing more kinds of targets: SV240 multi-narrowband filter select Ha,OIII,H-Beta wavelength effectively can cover almost photoing needs;
High transmittance: The >90% transmittance in core wavelength of Ha,OIII, H-Beta, more objects for your astrophotography by using this multi-bandpass filter;
Multi-bandpass filters: Without multiple filters' combination for colorful images;
Resistant of BORTLE 8: the multi-narrowband filters can be resistant from Bortle 1 to Bortle 8 cities, suitable for almost all urban.

Note: Optical filters that use infrared light often cause halos in the NIR region, which are exacerbated by the halos produced by the filter itself.

In Stock Out Of Stock

SV240 1.25inch Multi-Narrowband Filter

The Multi-Narrowband filter is designed for astrophotography, allowing you to capture most deep sky objects, including galaxies, reflection nebulae, emission nebulae, and star clusters, across a range of Bortle conditions (from Bortle 1 to Bortle 8). It is especially effective in light-polluted environments, enabling imaging under bright man-made light and moonlit conditions. Ideal for One-Shot Color cameras, this filter allows you to capture color images without the need for multiple filter combinations. It offers high transmittance of key emission lines (Ha/OIII/H-Beta) in the visible spectrum, enhancing signal-to-noise ratio (SNR) and contrast. Additionally, it passes near-infrared light, enabling imaging of deep sky objects that other filters may not capture.

multi-bandpass filter

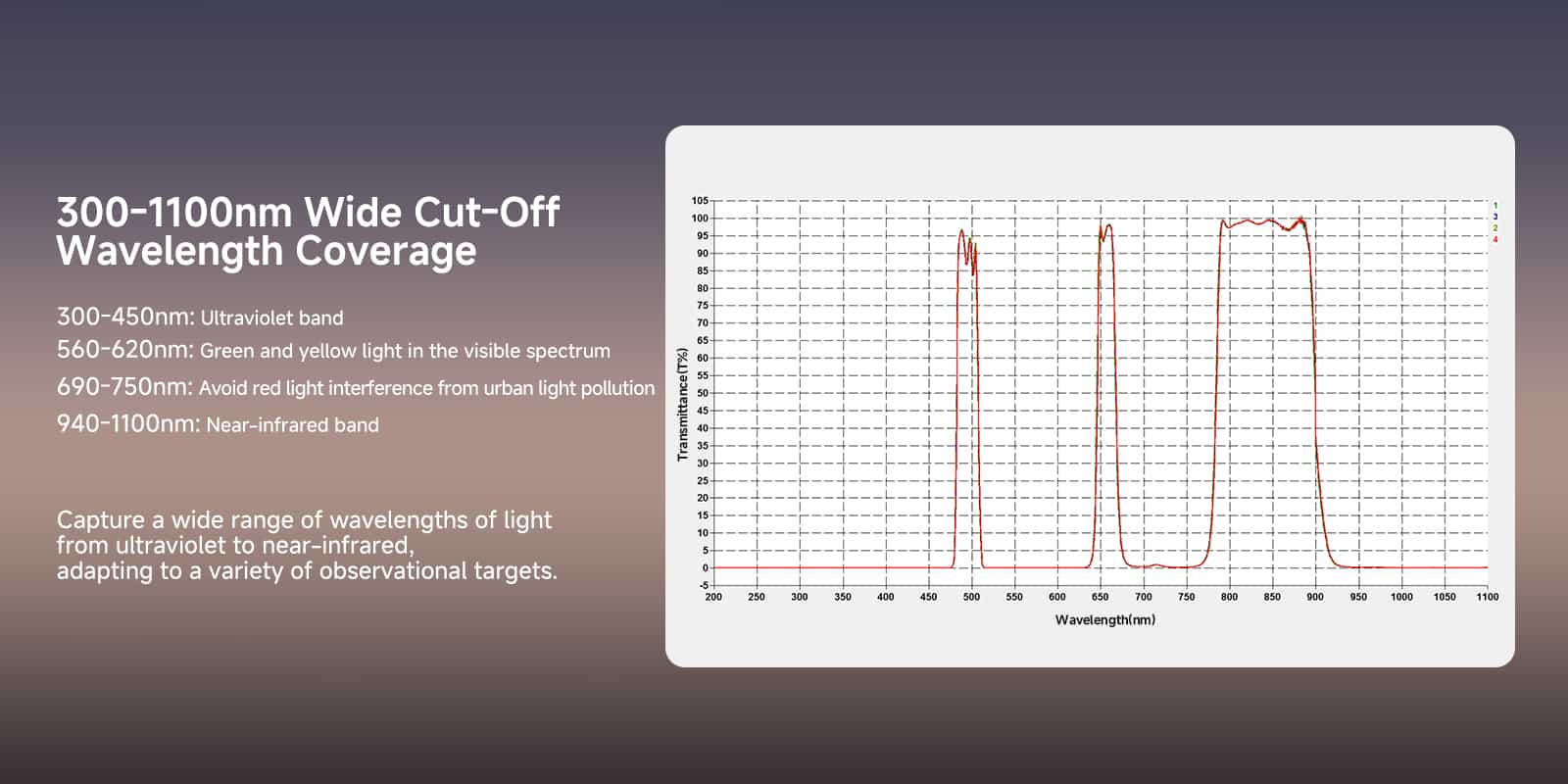

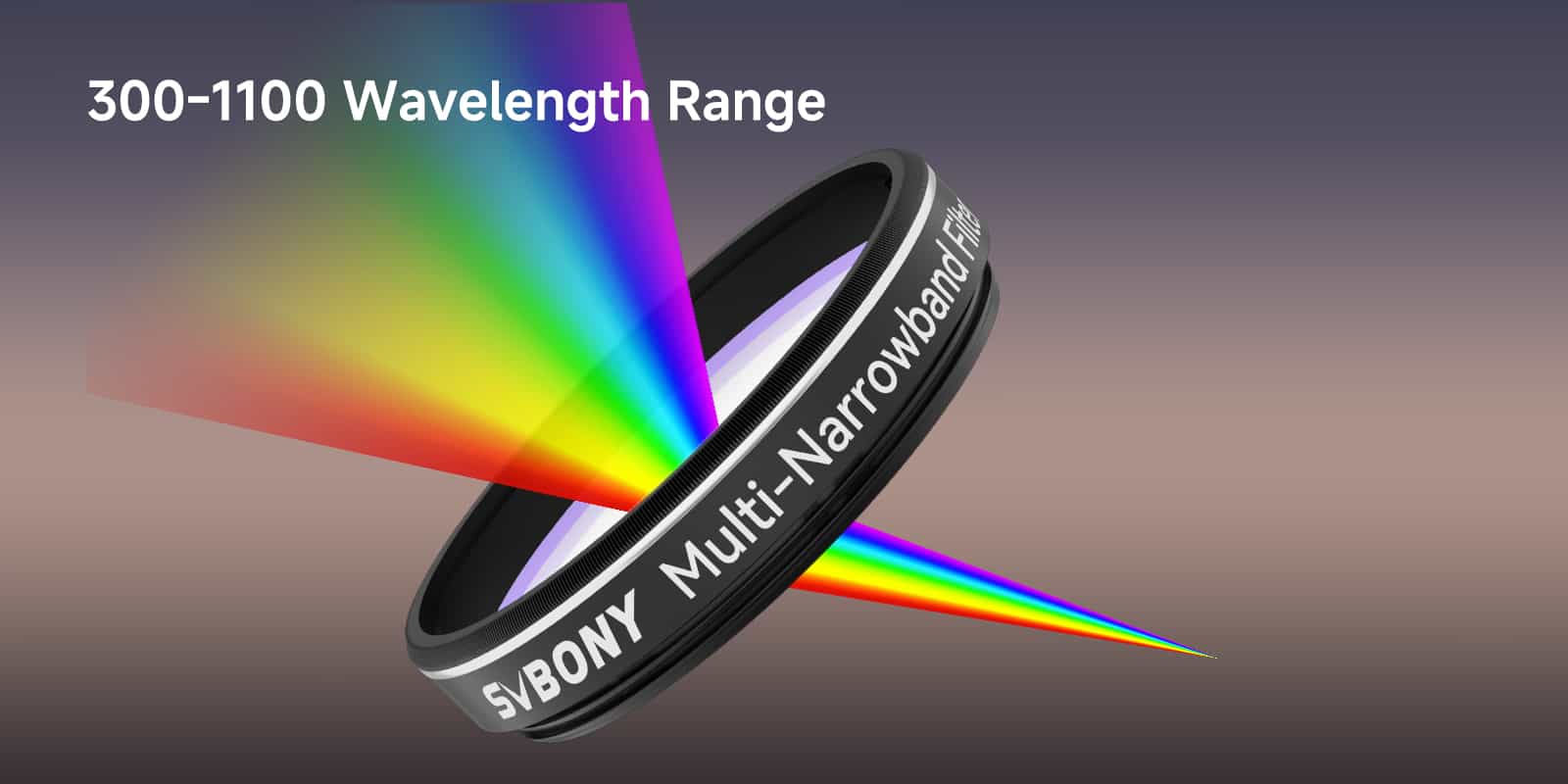

The 300-1100 nm working wavelength of this multi-narrowband filter provides wider coverage, enhancing its ability to tackle light pollution.

multi-bandpass filter

multi-bandpass filter

The multi-narrowband filters can be resistant from Bortle 1 to Bortle 8 cities, suitable for almost all urban.

multi-bandpass filter

multi-bandpass filter

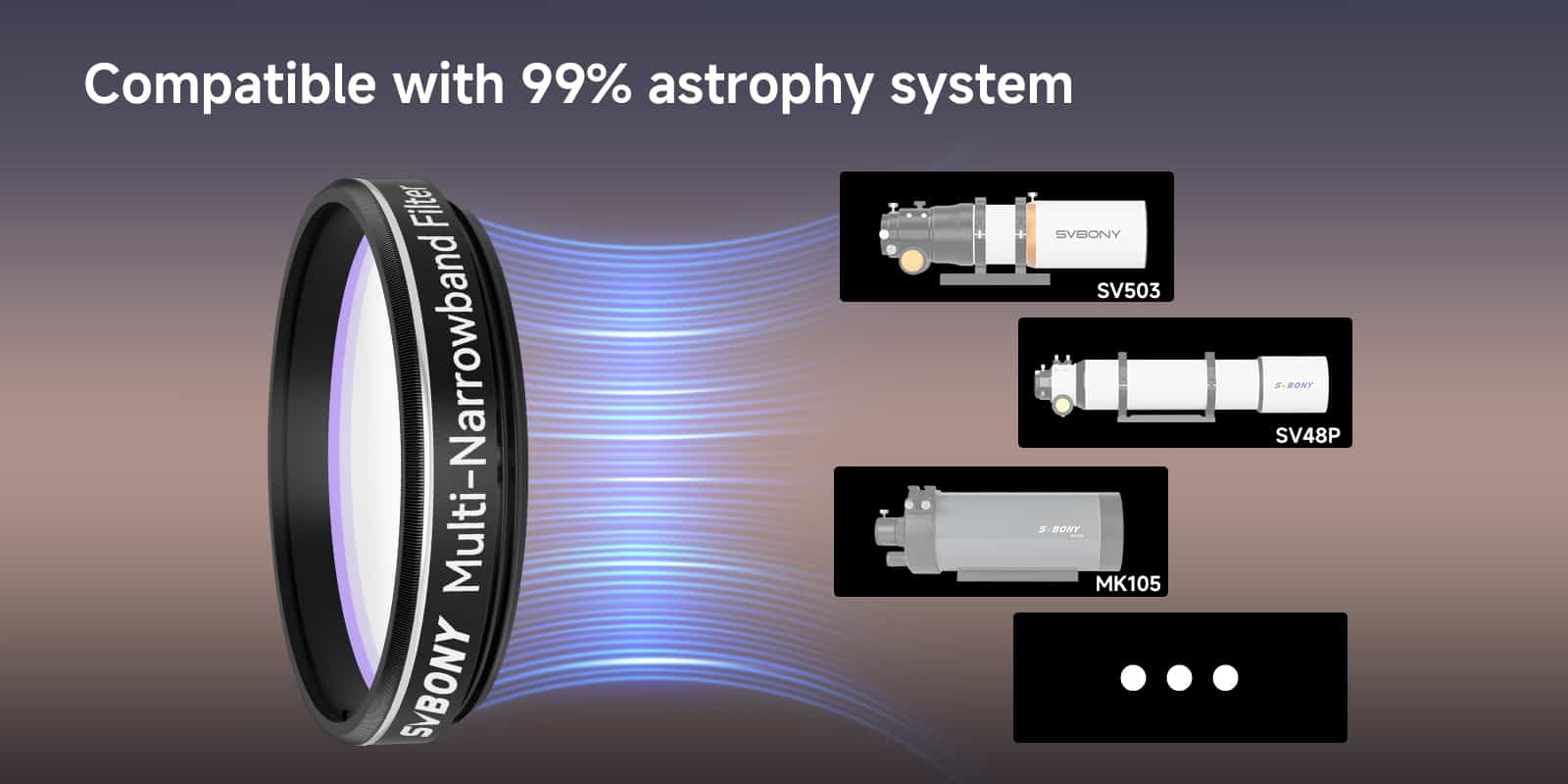

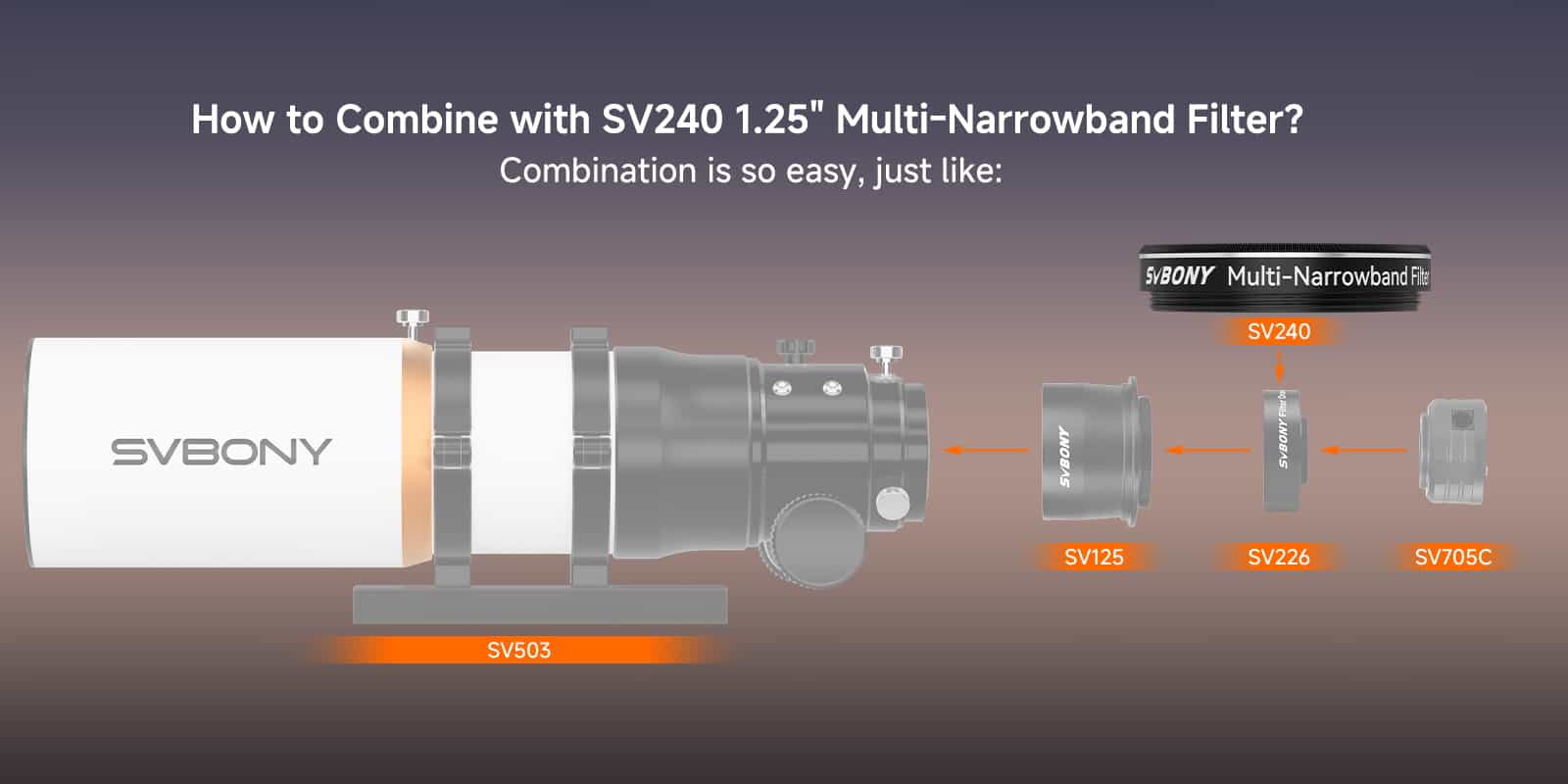

If you have different astrophotography systems, no need to prepare dedicated filters; one SV240 can meet your needs due to its high compatibility. The SV240 multi-narrowband filter adds high transmission in the near-infrared (NIR) band. This spectrum design improves the image signal-to-noise ratio and contrast by capturing signal in visible bands and NIR regions while maintaining good colour balance and being easier to manage in post-processing.

multi-bandpass filter

multi-bandpass filter

Real Shot Images

multi-bandpass filter

multi-bandpass filter

multi-bandpass filter

multi-bandpass filter

0 reviews

Write a review

Product Specifications 1.25 inches
Mirror Ring Size Φ31.75x7mm
Weight  5.4g
Thread Type Single Thread / Male Thread
Thread Specification M28.5*0.6mm
Material 6061T Aluminum Profile
Processing Technology/Surface Treatment CNC/Blackening and Delustering Oxidation
Substrate Corning EAGLE
Substrate Thickness 2.0mm
Light Aperture 26mm
Single Point Transmittance T>95%@486.1nm
T>92.4%@495.9nm
T>88.2%@500.7nm
T>97%@656.3nm
Infrared Transmittance Band Tavg>98.2%@830-870nm
Wavelength Control Point T=50%@482nm
T=50%@783nm
Cut-off Wavelength 300-450nm&560-620nm&690-750nm&940-1100nm
Bandwidth/FWHM 25nm&22nm&115nm
Cut-off depth Average >OD5 (0.0006%) & Average>OD4 (0.004%) & Average>OD2 (0.39%) & Average>OD3 (0.08%)
Surface quality 60/40
Surface parallelism λ/2

Package includes:

Packing box*1
PP Material Plastic Box*1
SVBONY 1.25" Multi-Narrowband Filter*1
