This Planetary Imaging Set includes the SV503 70ED refractor and the the SV705C planetary camera with a high-sensitivity IMX585 sensor, delivering stunning detail of the Moon, Jupiter, Saturn, and more. The SV165 30mm guide scope and SV905C camera ensure precise tracking, while the SV241 PowerBox keeps your setup organized and fully powered. To keep your views clear all night long, the SV172 400mm dew heater protects your optics from moisture.
Whether you're a beginner or an experienced astrophotographer, this all-in-one kit makes it easy to capture the cosmos.
Bundle Includes:
SVBONY SV503 70mm f/6.78 Refractor Telescope

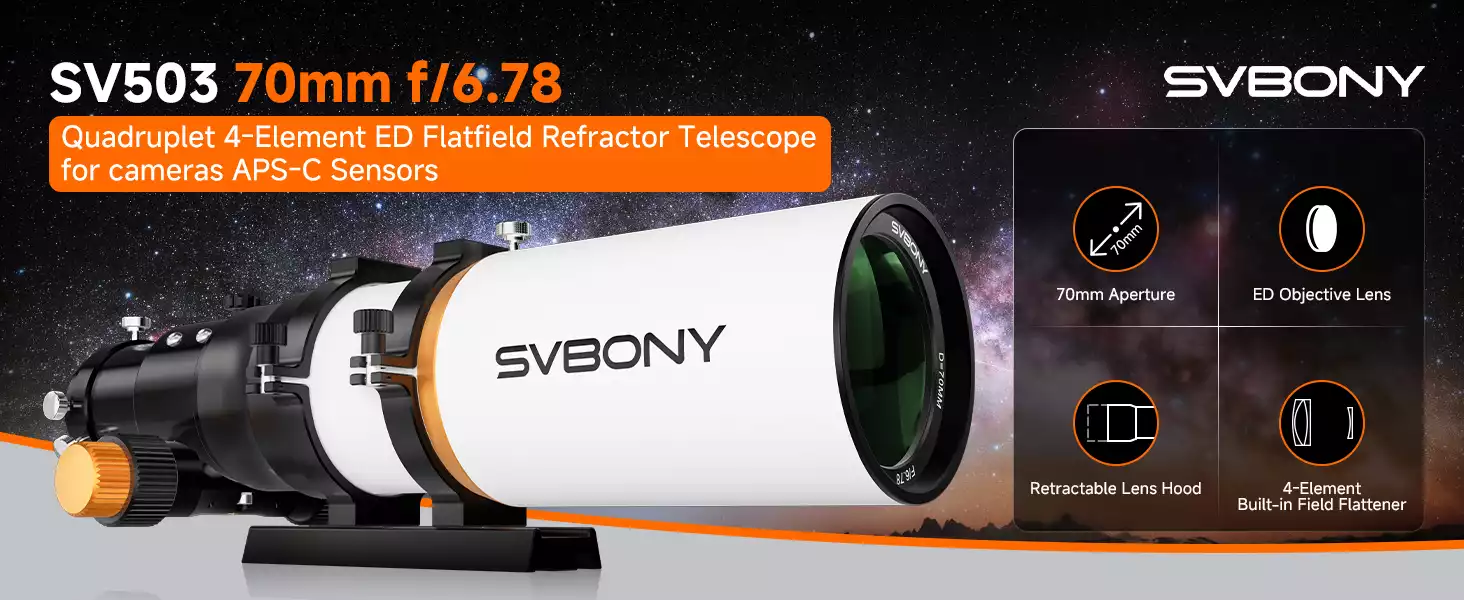

The SV503 70ED OTA with 4-element ED optical design combines FPL51 and lanthanum glass to minimize chromatic aberration and deliver excellent image fidelity. With built-in flat-field correction and an f/6.78 focal ratio, it ensures high-quality, wide-field views of the night sky. The dual-speed 1:10 focuser allows for ultra-fine adjustments, while the retractable lens hood improves portability. Compatible with both 1.25" and 2" accessories, it offers maximum flexibility without swapping tubes - perfect for both imaging and visual observation.

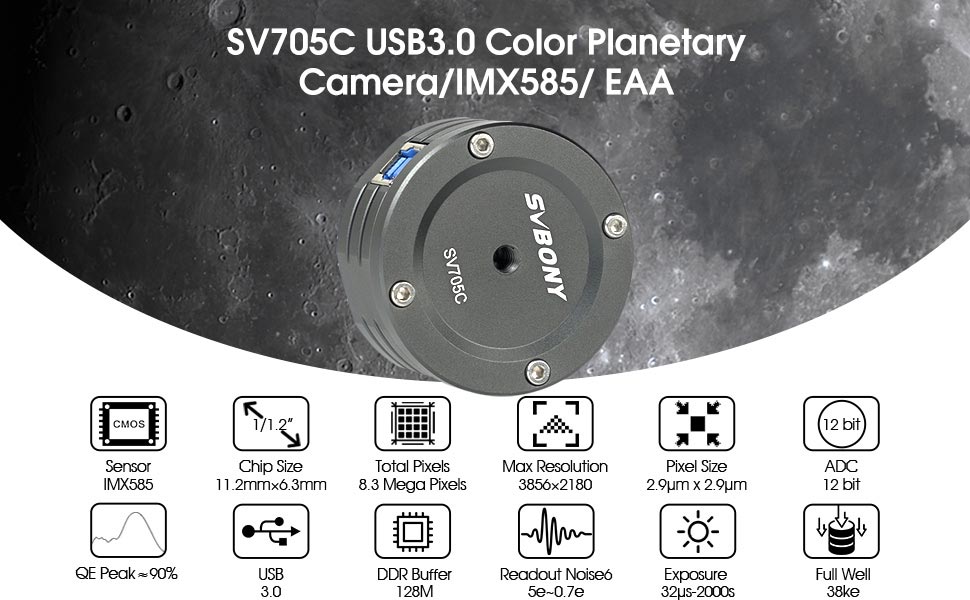

The SV705C planetary camera, built around IMX585 1/1.2″ back‑illuminated sensor. With a resolution of 3856 × 2180 (8.3 MP), 2.9 μm pixels, and a high 90% peak quantum efficiency, it delivers sharp, color‑rich images - ideal for capturing planets, Moon, nebulae, and more.
This camera adopts anti-amp-glow technology, which maximizes the camera's photography performance, and the image is clean whether you are using long exposures or high gain values.Boasting a fast 45 fps frame rate, ultra‑low readout noise (0.7-6.5e⁻), and a generous 38k e⁻ full‑well capacity, the SV705C is engineered for clean, high‑dynamic‑range imaging - even under low‑light conditions.
The built‑in 128 MB buffer ensures smooth USB 3.0 data transfer, preventing frame loss during busy sessions.Designed for versatility, it includes an ST‑4 guiding port compatible with PHD2, ASCOM, and major mount systems. Included adapters allow seamless integration with various scopes and setups.
The SVBONY SV905C guide camera is a compact, 1.2 MP color guiding and planetary camera based on the IMX225 sensor with 3.75 µm pixels, delivering up to 39 fps and an impressive ~80% peak QE and ~4e⁻ read noise - ideal for detecting faint guide stars and capturing fine details.
It supports exposures from 64 µs to 2000 s, includes ROI and 2×2 binning for flexible use, and features a USB‑C (USB 2.0) + ST‑4 interface for easy integration with PHD2 and ASCOM mounts.
Its AR‑coated front window, 1.25″ body, and CS/C‑mount adapter ring enhance protection and adaptability.It offers solid performance, especially suited for f/4–f/6 guide scopes.

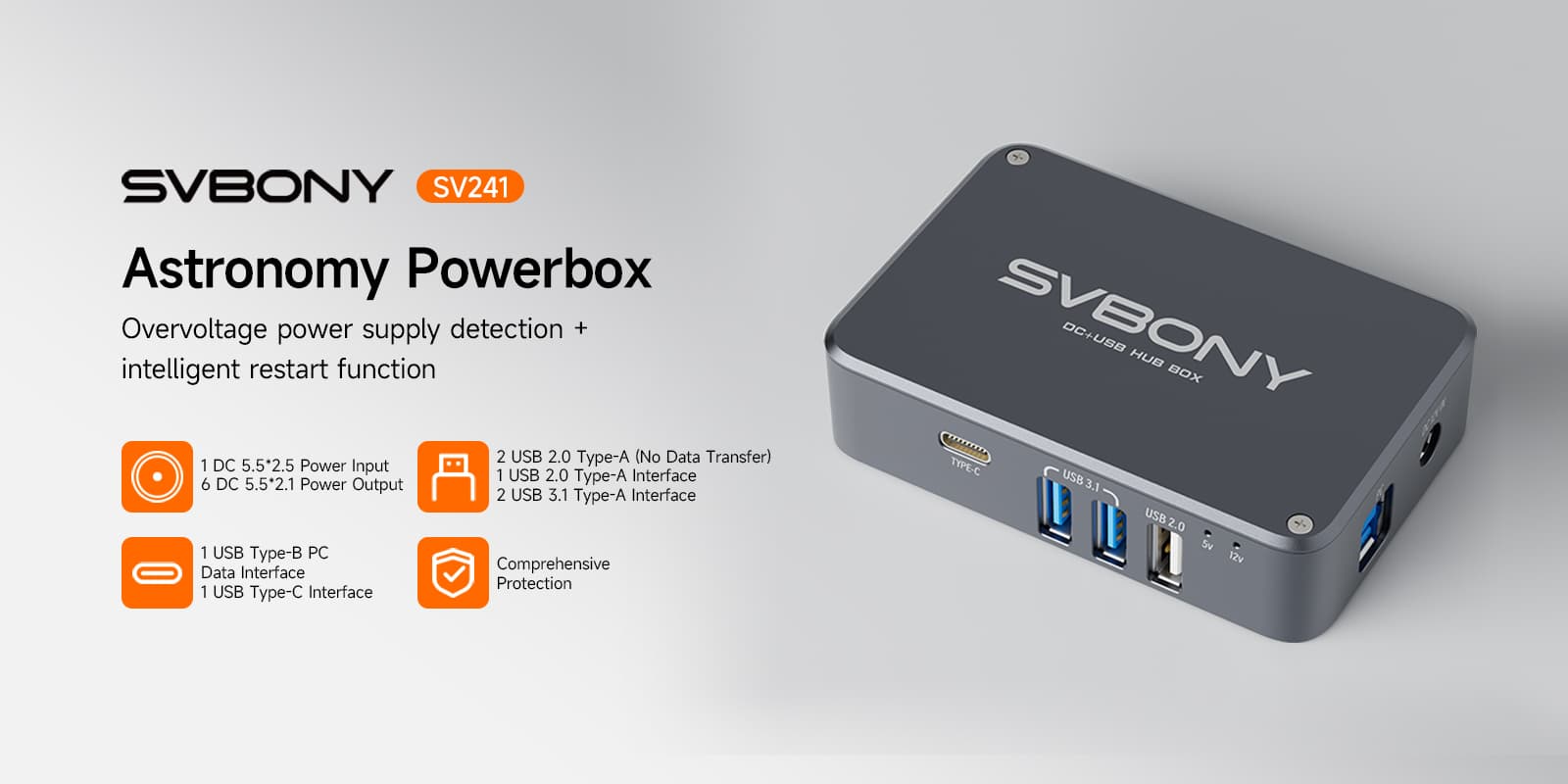

The SVBONY SV241 Astronomy Power Pack is a miniature DC+USB hub designed specifically for astrophotography. It has 6 12V DC output ports (supporting 10A high current), 2 USB3.1 high speed data ports, 1 USB2.0 data port, 2 power-only USB2.0 ports and 1 Type-C connector. It can simultaneously power and transfer data for astronomical cameras, equatorial instruments, stargazer cameras, dew heater and other devices. Its lightweight design with M4 and UNC 1/4-20 screw holes allows for easy installation, and it is also equipped with multiple safety features such as ESD protection and reverse polarity protection.
| Brand | SVBONY |
| Model | SV503 |
| Aperture | 70mm/2.8" |
| Focal length | 474 mm/18.7" |
| Focal ratio | f/6.78 |
| Objective Type | 2-Element ED lens with FPL51 and lanthanum special glass |
| Corrector | 2-element corrector installed in the tube |
| Focuser | 2.5" RAP focuser with 2" reduction adapter and M54x0.75 female thread |
| Corrected and Flatfield | 32 mm/1.3" with 100% correction |
| Working distance from the 2" receptacle | 127.5 mm/5" |
| Tube length min. | 365mm/14.4" |
| Tube diameter | 82mm/3.2" |
| Dew shield diameter | 93 mm/3.7" |
| Tube weight incl. accessories | 2685g/5.9lb |
| Model | SV705C |
| Sensor | IMX585 |
| Total Pixels | 8.3 Mega Pixels |
| Diagonal | 12.85mm |
| Max Resolution | 3856×2180 |
| Pixel Size | 2.9μm X 2.9μm |
| Chip Size | 11.2mm×6.3mm |
| Frame Rate | 45FPS |
| Shutter | Rolling shutter |
| Exposure Range | 32μs-2000s |
| Readout Noise | 6.5e~0.7e |
| QE Peak | ≈90% |
| Full Well | 38k e |
| ADC | 12 bit |
| ROI | YES |
| BIN | 1X1 2X2 |
| Digital noise reduction | HCG |
| Compatible OS | Windows , Linux OS Raspberry Pi，Mac os, Chrome os |
| Caching | 128M |
| Guiding Port | ST4 |
| Data Port | USB3.0 |
| Adapter | 1.25″/2″/ M42X0.75/CS/C |
| Back Focal Length | 6.5mm/12.5mm |
| Protective Window | AR Coating |
| Working Humidity | 30%-80% |
| Storage Humidity | 20%-90% |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
| Product Size | Ø58x38.3mm |
| Package Weight | 575g |
| Model | SV165 |
| Aperture | 30mm |
| Focal length | 120mm |
| Focal Ratio | F4 |
| Hoop and Mount | Yes |
| Tube travel | 45mm |
| Back Focus Length | 26mm |
| Mount | UNC 1/4-20 |
| Material | Aluminum |
| Surface technology | Sandblasting oxidation |
| Model | SV905C |
| Sensor | IMX225 |
| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 4.8mm×3.6mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 80% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 8.5mm/12.5mm |
| Protective glass | AR Coating |
| weight(with parcel) | 230g |
| Package size | 162*132*70 mm |
| Brand | SVBONY |
| Name | Powerbox |
| Model | SV241 |
| Power Input | 12VDC 5.5*2.5, 10A |
| DC Output Ports | 6x12VDC 5.5*2.1 straight-through output |
| USB Hub Output | 2*USB 3.1 Type-A (Data Transfer) |
| 1*USB 2.0 Type-A (Data Transfer) | |
| 2*USB 2.0 Type-A (Power Only) | |
| 1 x USB Type-C | |
| USB Power Capability | 5V 8A |
| DC Power Capability | 12V 10A |
| PC Data Transfer Interface | USB Type-B to USB Type-A |
| Power Indicator | Red Indicator Light |
| Circuit Protection | ESD Protection |
| Reverse Polarity Protection | Filter Protection |
| Over-voltage Protection |
Over-current Protection (USB Ports) |
| Short-circuit Protection (USB Ports) | |
| Maximum Current | 10A |
| Compatible Devices |
DC: Astronomical Camera, CAA, Computer, Equatorial Mount, Dew Heater |
| USB: Astronomical Camera, CAA, EAF, Computer, Equatorial Mount, OAG, EFW | |
| Waterproof | No |
| Mount Type | UNC 1/4-20 + 2*M4 (The distance between M4 screw holes is 20mm) |
| Net Weight | 125g |
| Dimensions of the body | 96mm*61mm*25mm |
| Model | SV172 |
| Total Length | 480mm |
| Heater Length | 400mm |
| Interface Type | USB Type-A |
| Input Voltage | DV 5V |
| Input Current | 1.9A~2.2A |
| Power | 9.5W-9.75W |
| Temperature Adjustable | Yes |
| Power Cable Length | 1.8m |
| Strip Material | Imitation OK cloth + SBR + Black-T +Aluminum Film+ PU |
| Power cord material | Nylon |
| Fit for OTA |
SV48P 90, SV503 80ED, SV550 80APO |
Feature:
- 1. One-stop solution: integrated primary mirror, camera, star guide system, power supply and anti-dew equipment, no need to purchase additional accessories.
2. Cost-effective optical configuration: ED lenses + flat field corrector, IMX585 high sensitivity sensor, balancing image quality and sensitivity.
3. Easy-to-use design: dual-speed focus, retractable lens barrel, multi-interface compatibility, suitable for different scenes.
4. Professional star guide system: SV165 star guide + SV905C camera combination ensures tracking accuracy and reduces image trailing. - 5. Applicable scenes:High resolution photography of planets, moon and other celestial bodies.
