- High-Sensitivity Astro Camera SV605CC Cooled Sensor IMX533 + Fast Lens (No included);

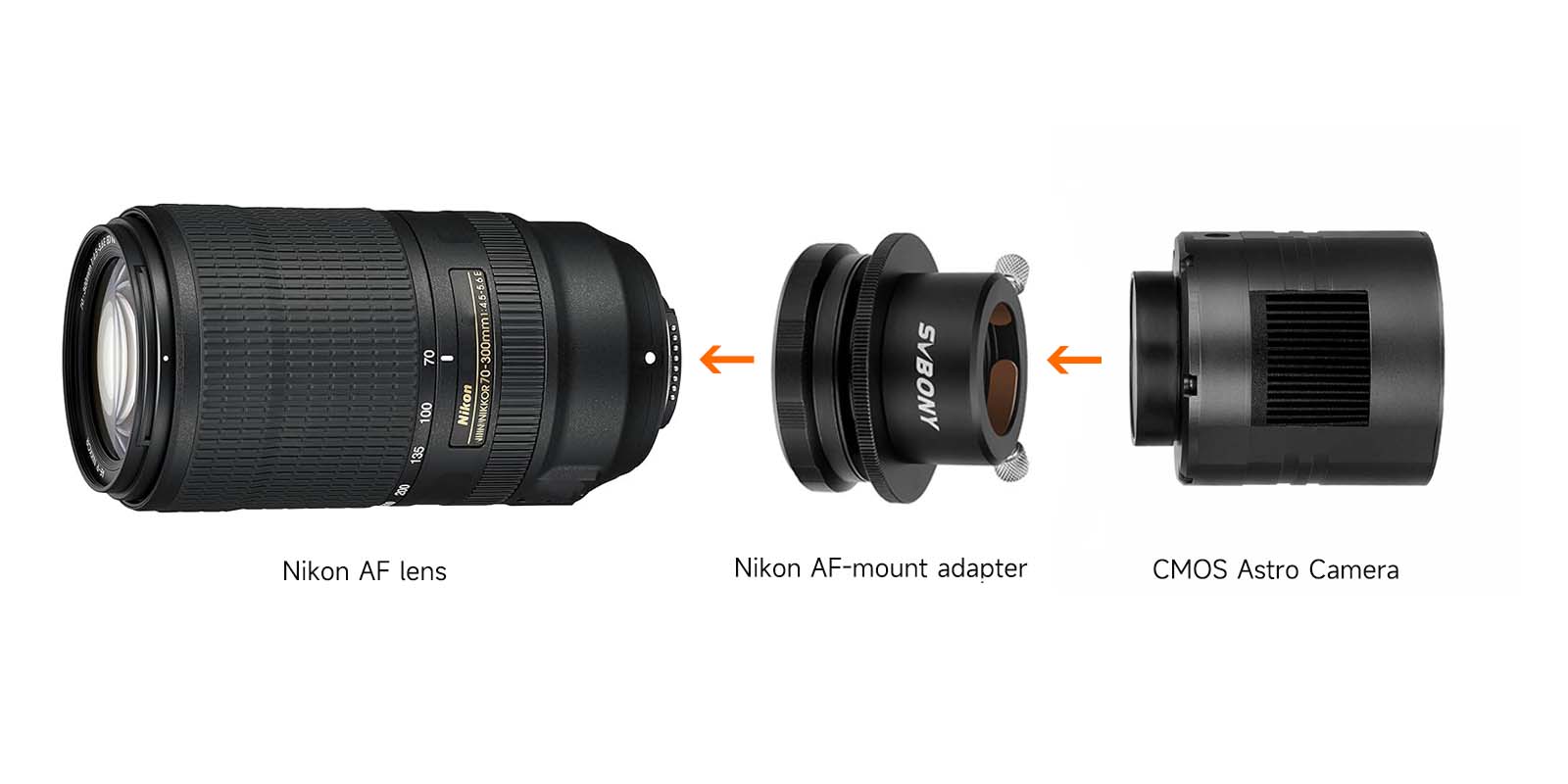

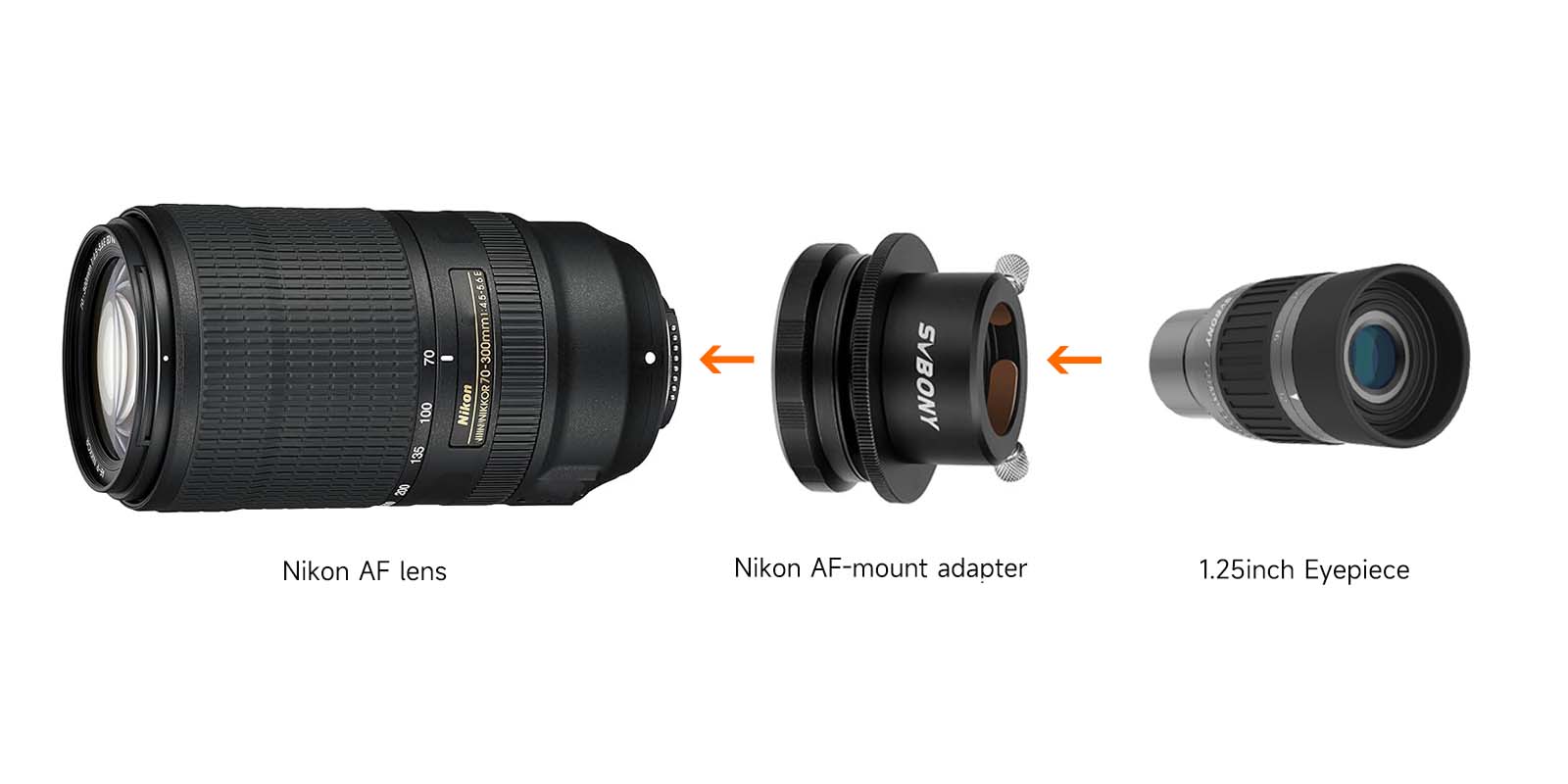

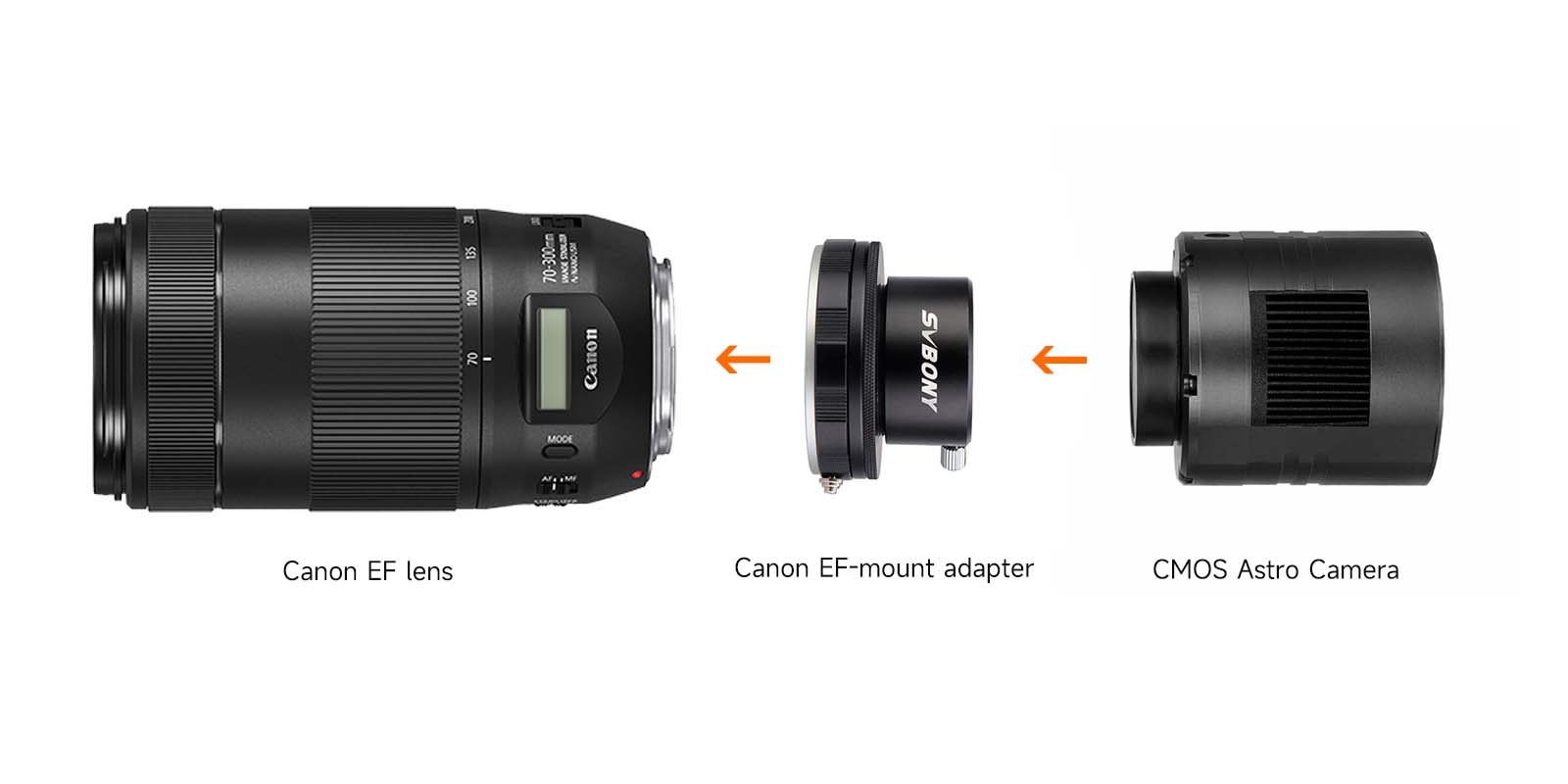

- SV149 Canon/Nikon Adapter-Assisted / T-Ring Compatible;
- Target for Wide-Field High-Resolution Astrophotography, DSLR Lens to Astro Cam, Lens-Coupled Imaging.
Fast shipping, duty-free
In Stock
Payment Methods
Delivery Method
Double-Certified for Global Reliability
| Model | SV605CC |
| Sensor | Color IMX533 CMOS |
| Image Resolution | 3008*3008 |
| Total Pixels | 9.0 Megapixel |
| Pixel Size | 3.76μm x 3.76μm |
| Target Size | 1'' |
| Diagonal | 15.968mm |
| Maximum Frame Rate | 20FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |
| Cache | DDR3 256M |
| Time of Exposure | 0.05ms-2000s |
| Readout Noise | 1.0e-3.3e- |
| QE Peak | 0.91 |
| Full Charged | 50ke- |
| ADC | 14bit |
| Temperature Display | Display on software |
| Cooling System | TEC Semiconductor 2-Stage Refrigeration |
| Digital Noise Reduction | Support |
| ROI | Support |
| Pixel Binning | BIN1,BIN2,BIN3,BIN4 |
| Operating System | Windows,Linux,Mac OS,Raspberry Pi,Chrome OS |
| Protective Window Optical Glass | AR Coating |
| Camera Interface Specifications | 2''/1.25''/M42X0.75 |
| Back Focus Distance | 6.5mm/17.5 |
| Workiung Current | < 300MA |
| Stand-by Current | < 30MA |
| Model | SV149 |
| SKU | W9112A |
| Color | Black |
| Material | Aluminum Alloy |
| Suitable for Lens Type | Canon (EF and EF-S) |
| Adapter size | M60*0.75 |
| Dimensions | 70*41*70mm |
| Weight | 122g / 4.25oz / 0.266lb |
| Model | SV149 |
| SKU | W9112B |
| Color | Black |
| Material | Aluminum Alloy |
| Suitable for Lens Type | Nikon AF-Mount |
| Adapter size | M52*0.75 |
| Dimensions | 78*58*60mm |
| Weight | 137g / 4.84oz / 0.302lb |
Features

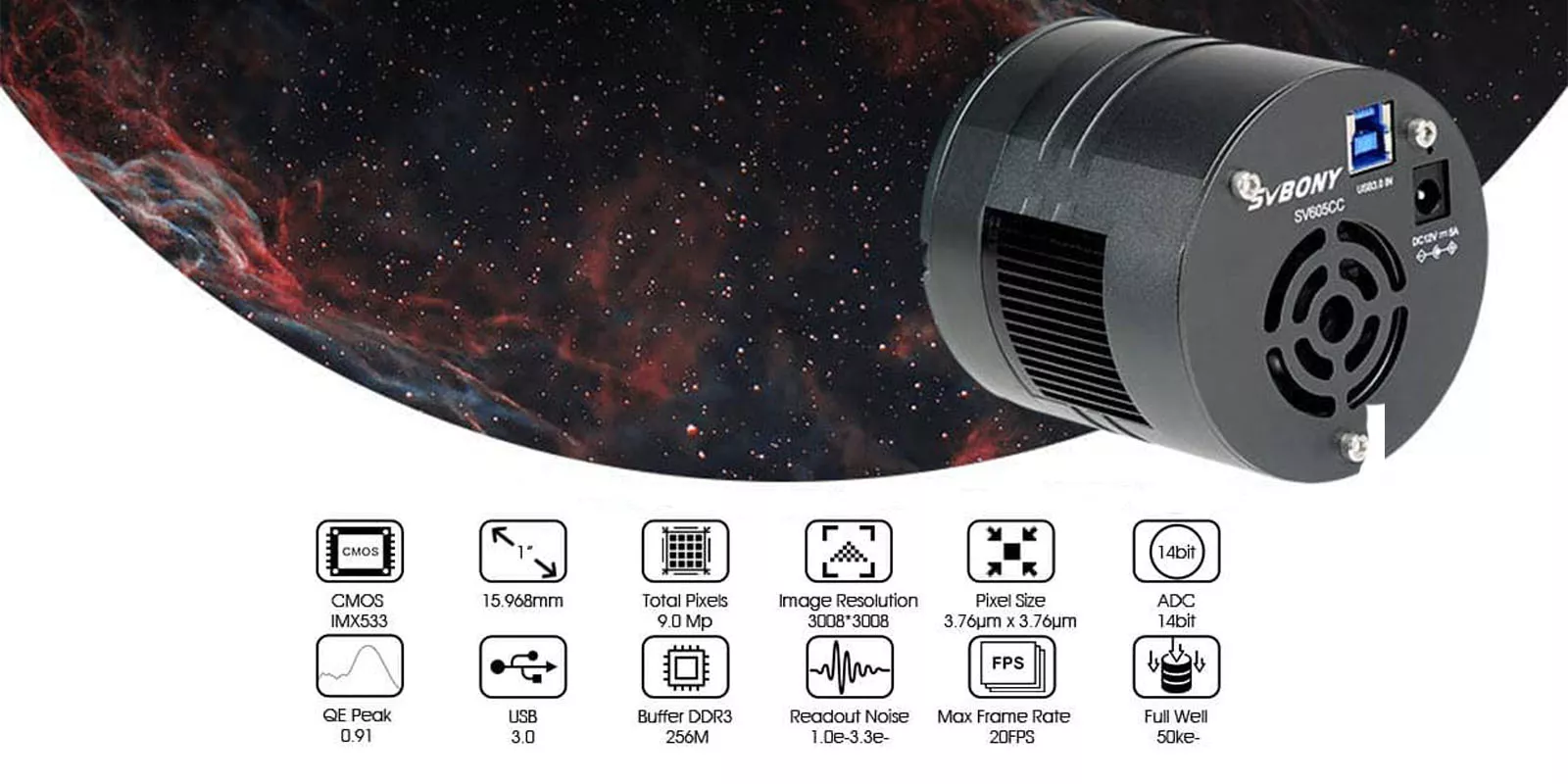

- SV605CC is the deep space camera of SVBONY brand. It is designed with SONY IMX533 color SMOS sensor,which is recommended by amateur asreonomers. Here are some highlights:
- 1. Back-illuminated sensor - improving sensitivity and reducing noise
- 2. 1'' format with 3.76 um pixel size - ideal for many types of telescopes
- 3. 14-bit ADC - giving high dynamic range of 13 stops.
- 4. An impressive 50ke-full well capacity - helping to reduce the issue of,for example,saturated stars.
- 5. HCG mode - When set the gain at 120 or higher,the HCG mode is autonatically enabled,and reduce the read noise to even lover levels without loss the dynamic range.
- 6. Exceptuinal low-illumination performance of SNR1s:0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 3.76um.This makes the IMX533 ieal for security camera market applicatiuons that require low illumination performance.
- 7. The IMX533 sensor adopts the 1'' format and provides the necessary number of pixels for true 4k output at 120 frames per second(W/ ADC 10-bit output mode,the SV605CC can run up to 20fps at 4k format when used with USB3.0)
